Megger EVCC300 Electric Vehicle Charger Checker

Megger EVCC300 Electric Vehicle Charger Checker

The new Megger EVCC300 introduces a new and convenient way of checking Electric Vehicle charge points. A simple all in one concept provides an easy to use solution to check both the safety and operation of mode 2 and single phase mode 3 (level 1 and two phase level 2) EV chargers. The instrument is ideal for those wishing to perform a check on an EV charger following manufacture, installation or repair, or just part of a maintenance schedule / inspection.

Nuisance charger supply tripping check

This test will help determine whether the EV charger user is likely to experience nuisance tripping of the RCD or GFCI. The Megger EVCC300 slowly increases ground / earth leakage current until the protective device trips to ensure it trips at the correct leakage current level. If the leakage current that trips the device is too low it will indicate either an issue with the device or there is already a high level of leakage present.

Megger EVCC300 safety checks

• PE touch pad to check ground connection and hazardous voltages
• PE resistance (RPE) test to check any exposed metal work is properly grounded / earthed
• Touch voltage test to ensure the charger ground / earth does not rise to a hazardous level when charger output is on
• RCD / GFCI protection check by timing the device tripping speed

Proximity detection operation check

The Megger EVCC300 can check that proximity is detected and also whether, when testing a type 1 connection, that latching detection has worked correctly.

Control pilot operation check

Not only can the EVCC300 set CP states to operate the EV charger, the instrument can read the response state of the charger. The codes A, B, C, D, E and F can be set by the EVCC300 and the response of the charger displayed on the instruments colour display. The charger PC state is displayed together with the chargers indicated maximum charge current, all to IEC61851-1 requirements.

Control pilot signal check

The EVCC300 measures the CP signal Voltage, Frequency and Duty cycle. Repeated measurements will highlight instability in the signal.

EV charger output check

The Megger EVCC300 measures the output voltage and frequency of the EV charger when charging in is in progress. When appropriate the EVCC300 also checks for correct L – N supply polarity.

Key Features

• Avoids nuisance trips by checking RCD/GFCI trips
• Simulates EV control pilot states for control pilot check
• Indicates connection and latching with proximity pilot check
• Measures touch voltage
• Measures protective conductor resistance
• Detects charger supply problems with protective earth checker
• Compatible with mode 2 and single phase mode 3 chargers
• Ideal for installation checking, health checks, and post-repair checks

Specifications

• Safety and operation checks on mode 2 and single phase mode 3 charge points
• Connects to SAE J1772 Type 1 and Type 2 charger connectors only
• Checking charger following installation before hand over to customer
• Checking charger as part of a regular maintenance schedule
• Checking charger following repair before hand over to customer
• Checking chargers following manufacturing as part of a QA inspection
• Fault checking when customer reports charger issues to car dealership/service centre

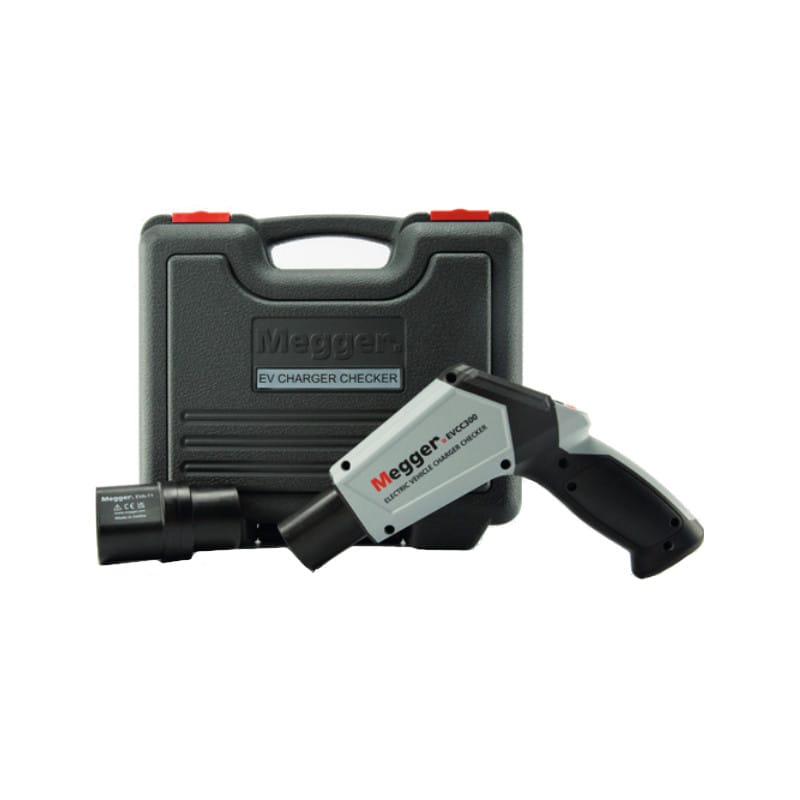

What’s Included

• Megger EVCC300 Electric Vehicle Charger Checker
• Hard carry case
• Type 1 adapter
