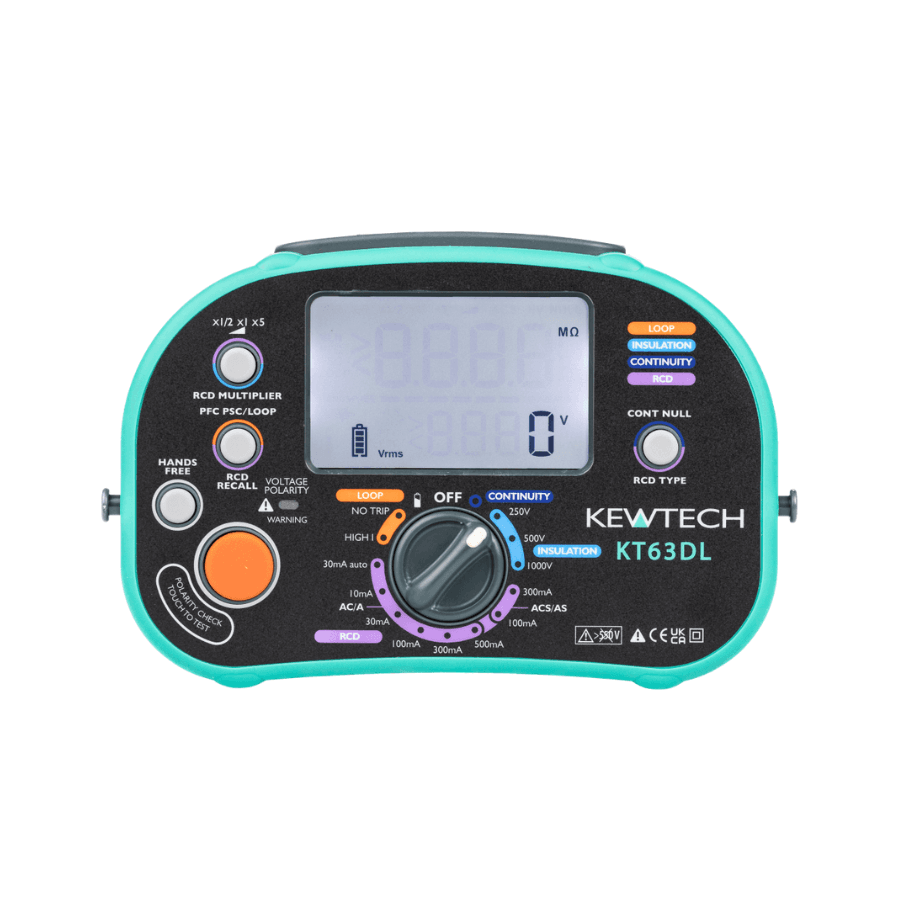

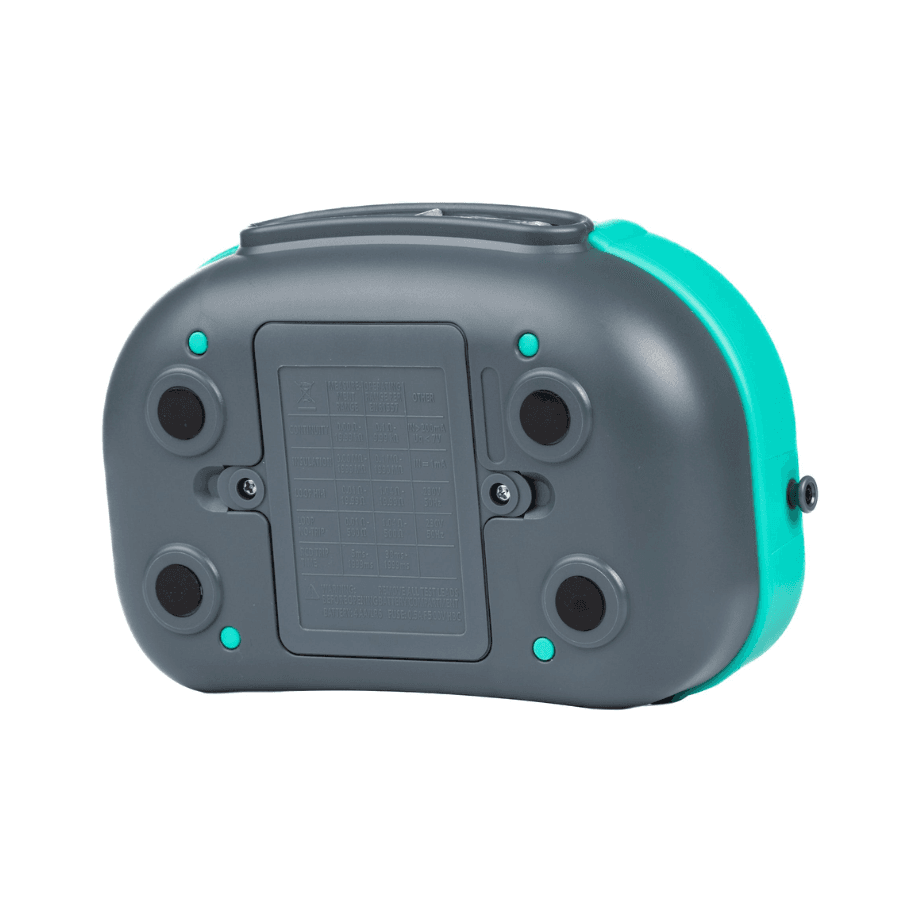

Kewtech KT63DL 5-in-1 Digital Multifunction Tester

Kewtech KT63DL 5-in-1 Digital Multifunction Tester

The Kewtech KT63DL 5-in-1 Digital Multifunction Tester is a top choice for domestic electricians. It offers a reliable, entry-level testing solution. Designed with user-friendliness and affordability in mind, this multifunction tester is ideal for frequent use. It is encased in a rugged, IP54-rated housing for durability. This provides protection against dust and moisture, ensuring it withstands everyday use. The simple, single rotary dial allows electricians to easily switch between loop, continuity, insulation, and RCD testing. This feature helps streamline the testing process.

For enhanced efficiency, the KT63DL includes a hands-free testing function that starts automatically once the leads are connected. The large backlit display ensures clear visibility, even in poorly lit environments. The included soft carry case provides safe storage and transport for the tester and its accessories. The KT63DL comes with essential items such as the Kewtech KAMP 13A mains lead and the ACC063 3-wire distribution board test lead set. Batteries and an end-of-line calibration certificate are also included. This allows for ‘out of the box’ testing.

Comprehensive Testing Capabilities

This versatile 5-in-1 tester offers advanced features, including anti-trip technology for RCD loop impedance testing. It also displays Prospective Fault Current (PFC) and Prospective Short Circuit (PSC) results conveniently during loop tests. It also offers a variety of insulation test voltages—250V, 500V, and 1000V—suitable for both dead and live testing scenarios. For continuity testing, the auto-ranging function up to 2000Ω and built-in live circuit protection ensure fast and accurate readings. Additionally, the KT63DL supports auto-testing of commonly used 30mA RCD types, reducing the need to manually reset the tester after each trip.

The updated DL version of the KT63DL now includes testing capabilities for type A and AS RCDs. It also features a ramp test function for 10mA RCDs. The unit is protected against phase-to-phase connections. Continuous live monitoring prevents accidental fuse blowing, adding an extra layer of safety. Its ergonomic design includes an intuitive user interface with a single rotary dial and easy-press buttons. This enhances the overall user experience.

Overall, the Kewtech KT63DL is an excellent choice for electricians needing a multifunction tester that is both easy to use and comprehensive in its testing capabilities. With all necessary accessories included, this tester offers excellent value and efficiency for both domestic and commercial electrical installations.
